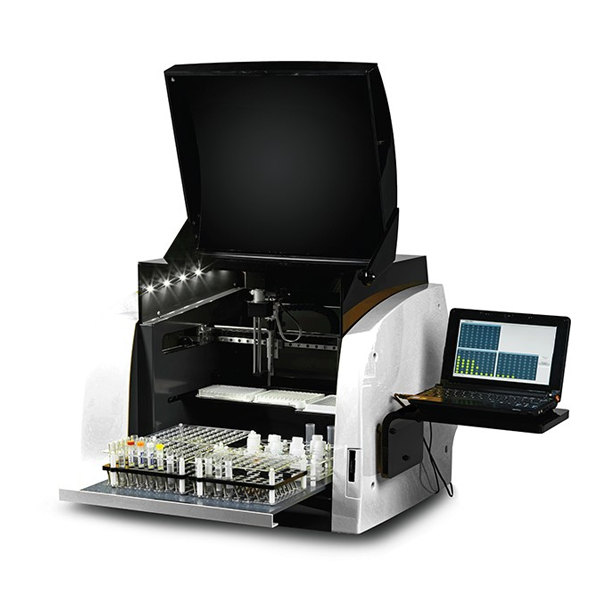

VIRCLIA®
Powerful Automation System with high capacity manufactured by Gold Standard Diagnostics.
Intuitive Software: Software that works the way your lab does.
Intelligent Racks: Automatic sample location management.
High Precision Micro -Syringe: Aspirate 1μl with less than 3% CV.
Built-in Reader: Ultra-compact and fully-automated reader options (EIA or CLIA+EIA)
Convection Incubator: Eliminate “Edge Effect” by evenly heating each well.
Probe-Mounted Camera: Real-time process monitoring and remote diagnostics.
Sliding Sample Tray: Easy loading and unloading of samples.
Built-in Barcode Reader: Streamline loading and decrease sample tracking errors.
Orbital Shaker: No-spill design, up to 900 RPM.
Sample Capacity 192 patient sample positions
Test Tube Size(s) Standards 12, 13 or 16 x 75 mm tubes (custom racks also available)
MTP Positions 2 positions
Pre-dilution MTP Positions 1 position
Well-Tracking Independent well tracking and timing
Wash bottles 2 external wash bottles
Probe/Needle Single probe, dual needle
Dispense Volume Up to 500 µl
Aspiration Volume 1 µl
Incubation Temperature Up to 40 ºC
Photometer Wavelenghts 405, 450, 490, 550 and 630 nm wavelengths standard (Custom wavelengths available)
Chemiluminescence Photomultiplier Tube (PMT) Detection type: glow, Spectral range: 300-500 nm, Dark count: 50 counts per second (standard), Measuring time: 200 ms (adjustable 1 to 1000 ms), Dynamic range: 6 decades (optional add-on).
Orbital MTP Shaker Amplitude: 1mm, Speed: Up to 900 RPM, Capacity: 3 MTP (2 reaction, 1 pre-dilution).
Power Supply 120-265V, 50-60Hz
Dimensions W: 64 cm, D: 57 cm, H: 45 cm (W: 25.2 in, D: 22.5 in, H: 17.7 in)
CE Listed Yes
mini VIDAS®
Compact multiparametric immunoanalyzer
mini VIDAS® is a compact automated immunoassay system based on the Enzyme Linked Fluorescent Assay (ELFA) principles. Convenient and user-friendly, it provides accurate on-demand test results.
- Robust and reliable: MTBF > 1 100 days
- Up to 36 tests per hour
- Broad menu: over 100 parameters available in single-test ready-to-use format
- Adapted to STAT testing
mini VIDAS® is greatly appreciated worldwide for its simplicity, flexibility, reliability and 24/7 availability. It processes single sample and batch tests for all types of analysis: serology, immunochemistry, antigen detection. Ten different analytes can be used simultaneously. All enzyme immunoassay reaction stages are performed automatically in minimal space: pipetting, incubating, washing, reading, and results are sent immediately to the integrated printer.
Compact instrument
- Completely self-contained unit:
- Analytical module with 12 test positions / 2 independent 6-test compartments
- Integrated monitor, keyboard and printer
- Fits easily into your laboratory:
- Light weight: only 88 lbs (40kg)
- Small dimensions
Simple and flexible
- Daily start-up completed in a few seconds only
- Easy to use:
- Patient ID acquisition & sample distribution
- Place SPR® and STRIP into the machine
- Press Start key
- Easy to use - Simple operations to launch a test
- Just ‘Load and go’
- Adapted to STAT testing: PCT, NT-proBNP, Galectin-3, Troponin I, Myoglobin, CK-MB, hCG…
- Single-dose format for all assays
- Kit size suited to small test volumes
- Simultaneous processing of different parameters
- No inter-reagent or inter-sample contamination
Large test menu
- Over 100 parameters in single-test format for the diagnosis of cardiovascular and infectious diseases, cancers, infertility, pregnancy and thyroiditis diseases
- On-demand testing: 1 patient, 1 test, 1 result
- Ready-to-use reagents
- Results in 17 to 90 minutes
- One order reference per test: kits include all components needed
Kryptor Compact Plus
Instrument: KRYPTOR compact PLUS
System Description: Fully automated immune analyzer
Throughput: Up to 60 samples/hr
Time to Result: 9–59 min
Size (W x H x D): 74 x 63 x 75 cm
Weight: 54 kg
Sample Types: Serum or plasma (assay specific)
Sample Volume: 8–70 μL (assay specific)
Technology: Nobel Prize-winning TRACE technology
Laboratory tests for:
- Infectious diseases including sepsis
- Patient stratification
- Acute myocardial infarction rule-out
- Diabetes insipidus
- Endocrinology and metabolic disorders
- Cancer diseases
- Prenatal screening & fertility
Laboratory tests for:
- Infectious diseases including sepsis
- Patient stratification
- Acute myocardial infarction rule-out
- Diabetes insipidus
- Endocrinology and metabolic disorders
- Cancer diseases
Immunoassay analyzer Liaison
The LIAISON® analyzer combines a flexible operating module with a broad menu of assays and leads to high efficiency due to its long walk-away time.
The possibility to run up to 15 different assays at a time provides rational everyday testing even with a small number of samples.
The LIAISON® Analyzer is easy to use due to its touch-screen monitor, clear software structure and reagent Integral which contains all assay-specific reagents.
Designed for immunoassay testing, LIAISON® Analyzer adopts a “Flash” chemiluminescence technology (CLIA) with a paramagnetic microparticle solid phase (MP).
Efficient from the start, the LIAISON® Analyzer allows the continuous loading of samples, reagents and the workload may be processed in random access or batch mode.
All assay methods are based on an internal Master Curve with 2-point calibration.
Autodilution, rerun and reflex testing are performed by operator request and automatically performed by the system. The LIAISON®system also has a STAT function in order to improve the efficiency of the laboratory.
DiaSorin offer a wide range of tests on the LIAISON® Analyzer.
